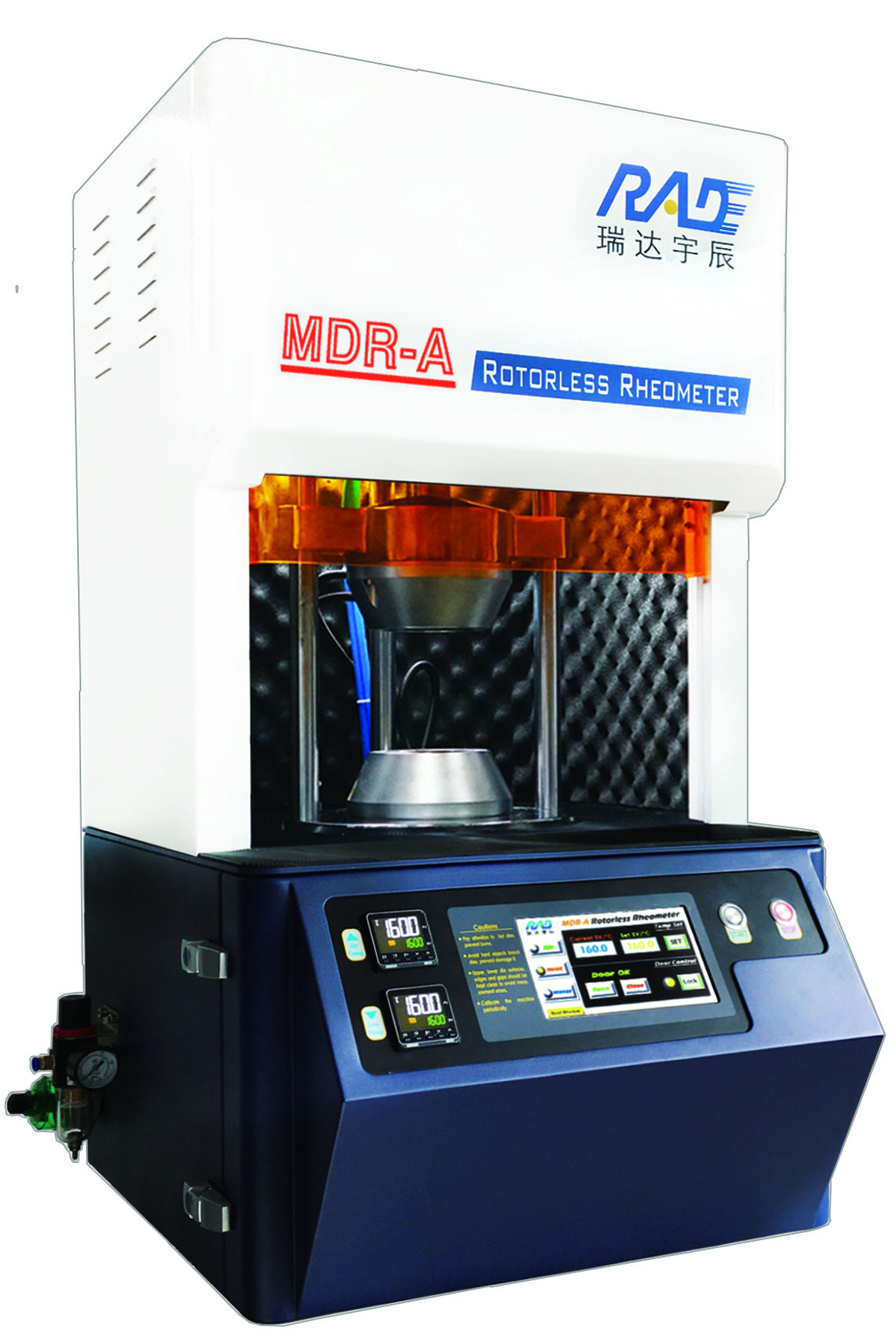

¡î MDR-A Rotorless Rheometer
MDR-A can be used for dynamic testing of the vulcanization rubber or
rubber-like material. Curing curves and characteristic parameters
can be obtained from MDR-A based on Fast Fourier Transform
algorithm, such as ML£¬MH£¬ts1£¬ts2£¬T10£¬T50£¬T90£¬S¡¯, S¡±, S*, Tan¦Ä etc.
which cover the sample¡¯s stiffness and damping property.
The MDR-A Rotorless Rheometer is produced based on existing ISO
6502,ASTM D5089,GB/T 16584 and HG/T 3709.
¡î
Characteristics
-
With PLC controller,
can provide more stable and flexible operation;
-
With high-precision
upper load cell and self-sealed die structure, can keep supreme
repeatability and reproducibility of test results;
-
Easy to operation and
with a fully automatic control system;
-
Heating fast and
temperature restore stability with good design on die heating
and sensor system;
-
Higher effective
temperature Control with high-quality PT100 and gauge;
-
Automatic and
security door.
¡î
Specification
- Range of
temperature control: From room temperature to 200¡ãC
- Temperature
fluctuation in die: ¡Ü¡À0.1¡ãC
- Temperature
display resolution: 0.1¡ãC
- Rate of
temperature increase: 32¡ãC/min
- Measurement
range of torque: 0-200dNm
- Torque
resolution: 0.01dNm
- Angle of die
oscillation: ¡À0.5¡ã,¡À1¡ã
- Frequency of
die oscillation: 1.67Hz (100r/min)
- Size:
520*540*1040 mm (W*L*H)
- Weight:
about 120Kg
- Power:
AC220~230V,50/60Hz,3A

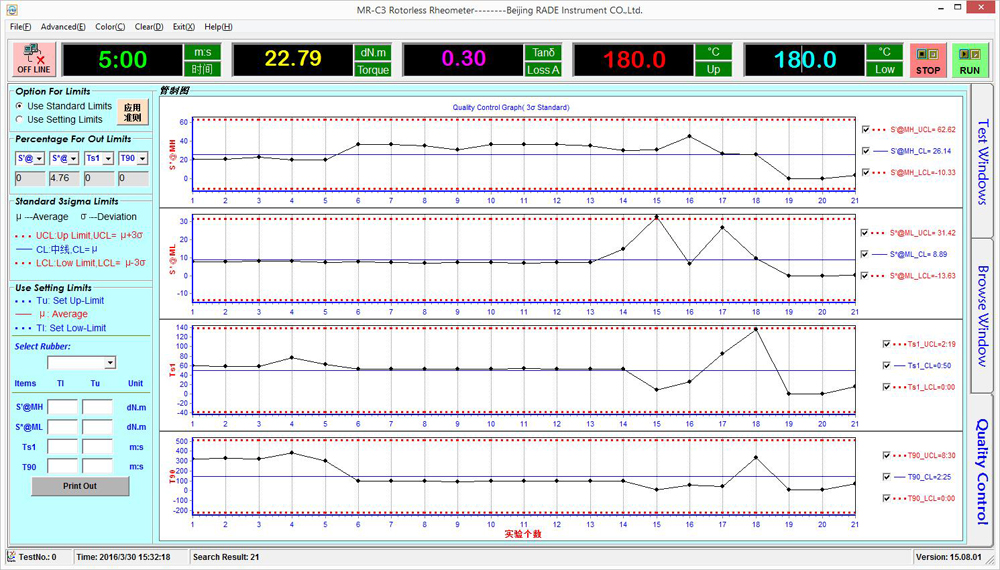

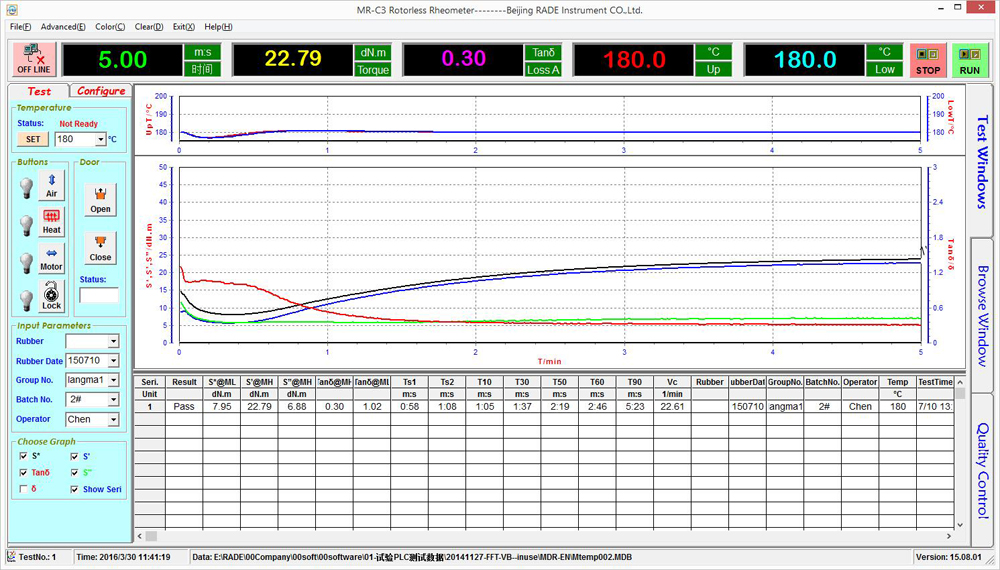

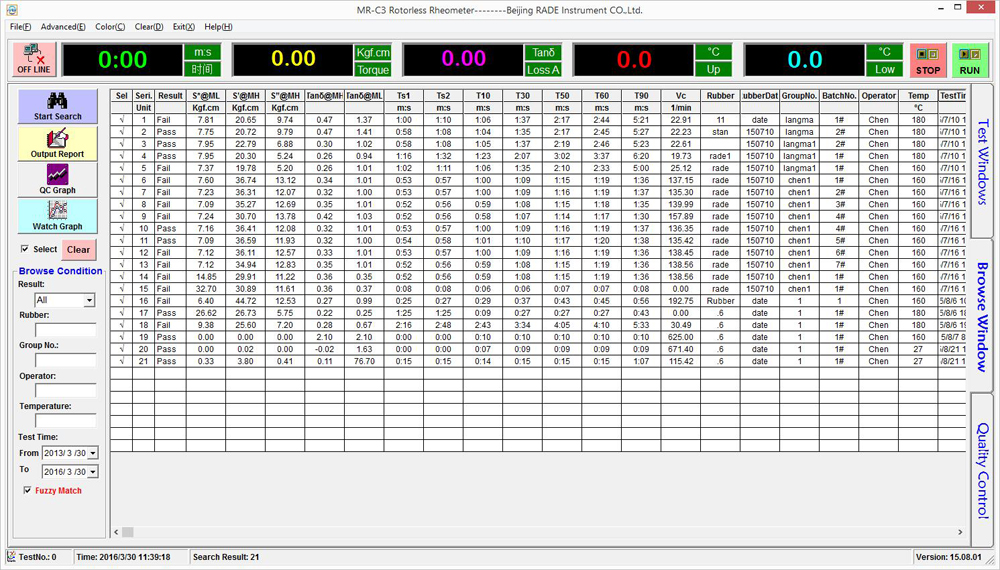

¡î MDR-A Test Results
