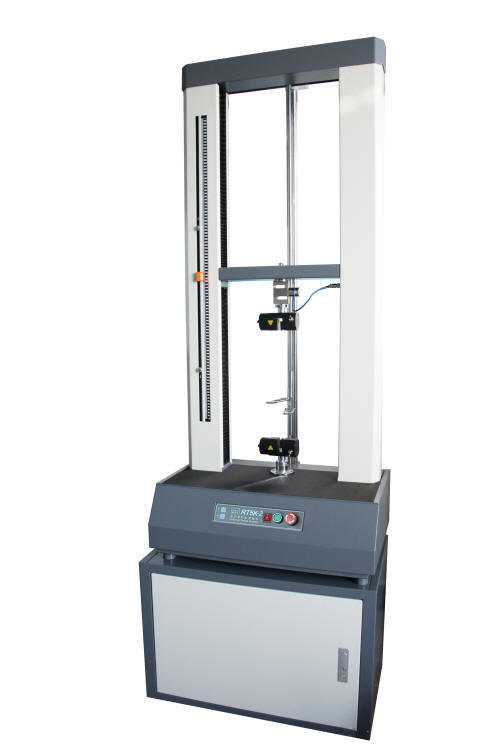

☆ RT5K-2 Universal Testing Machine

RT5K-2 Universal Testing Instrument is one kind of material testing facility with advanced technology, and suitable for testing physical features such as extension,shear, tearing and etc. on rubber, cord, steel cord and other products.

☆Technical indexes

  • Capacity: Maximum 5KN

  • Accuracy level: grade 0.5/1

  • Deformation measurement accuracy: within ±0.5% of read value

  • Effective measurement range: 0.4%~100% FS

  • Range of loading Speed: 1~500mm/min

  • Range of long travel extensometer: 0~800mm

  • Protective function: automatic protection reacts when loading is over maximum capacity

  • Frame dimension: 550*410*2400 mm (with basic)

  • Power: AC220~230V or AC110V~120V,50/60Hz,3A.  With power-off protection device

　

☆ RT50K-2 Universal Testing Machine

  • Capacity: 10KN / 20KN / 30KN ( Choose one)

  • Accuracy level: grade 0.5/1

  • Deformation measurement accuracy: within ±0.5% of read value

  • Effective measurement range: 0.4%~100% FS

  • Range of loading Speed: 0.1~500mm/min

  • Range of long travel extensometer: 10~900mm

  • Protective function: automatic protection reacts when loading is over maximum capacity

  • Frame dimension: 700*500*2100 mm

  • Power: AC220~230V or AC110V~120V, 50/60Hz,3A With power-off protection device

　

　

　

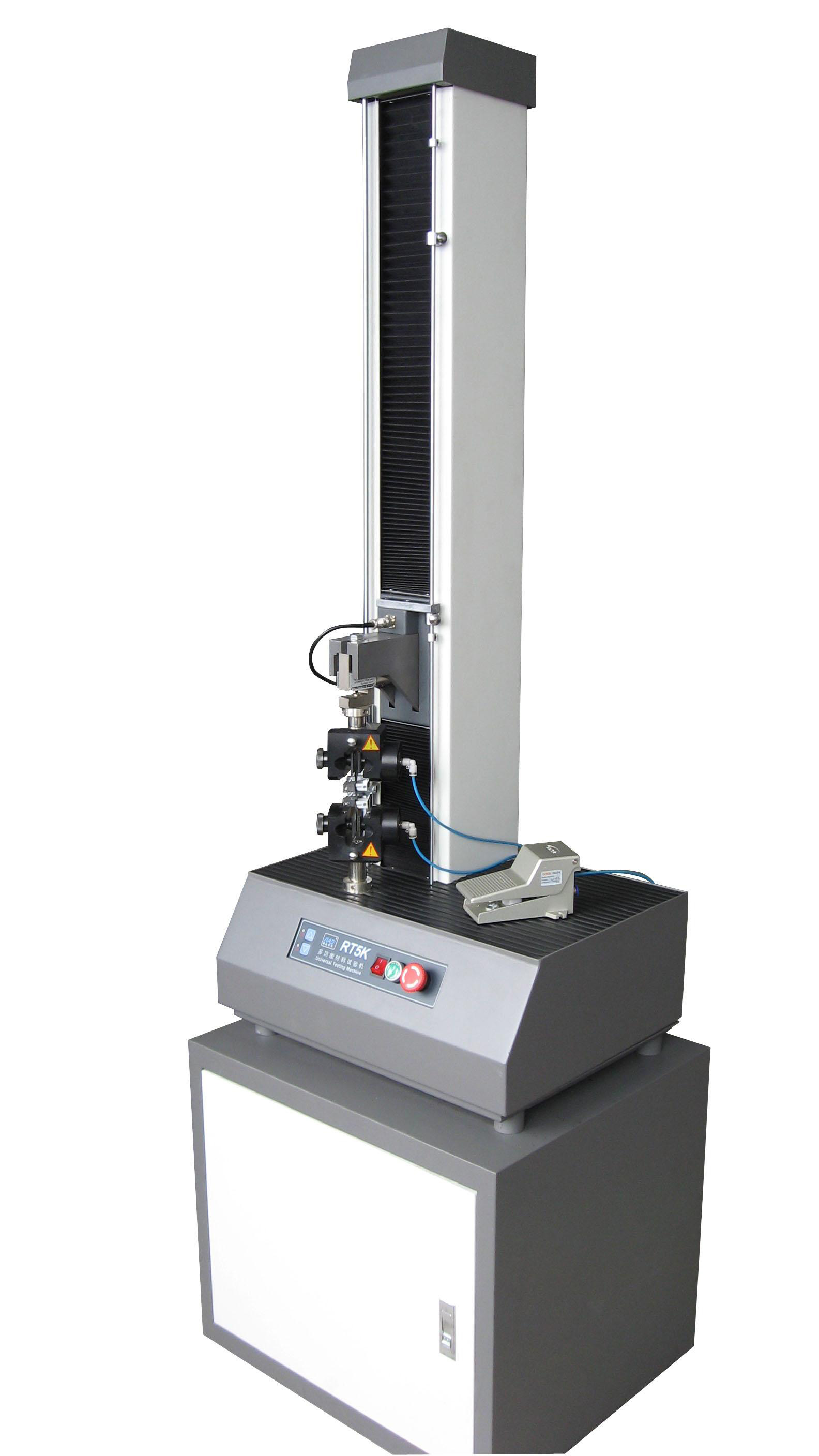

☆ RT5K Universal Testing Machine

  • Capacity: 5000N

  • Accuracy level: grade 0.5/1

  • Deformation measurement accuracy: within ±0.5% of read value

  • Effective measurement range: 0.4%~100% FS

  • Range of loading Speed: 1~500mm/min

  • Range of long travel extensometer: 10~600mm

  • Protective function: automatic protection reacts when loading is over maximum capacity

  • Frame dimension: 560*400*2000mm（with basis box)

　

　

☆Principal characteristics

Mechanical structure：

Adopting the gantry structure, weighted, good designed outlook, no-interval high precisely anti-friction bearing double filament shaft to ensure the steel character of the whole machine and load efficiency.

Driving device：

Adopting servo motor to link the filament shaft, and with lower noise.

Data acquisition and processing system：

Adopting advanced data acquisition and processing system, using USB data transmission interface which can provide higher speed and well control of the machine.

Measuring system：

Adopting imported load sensor and encoder, which provide higher precise testing data.

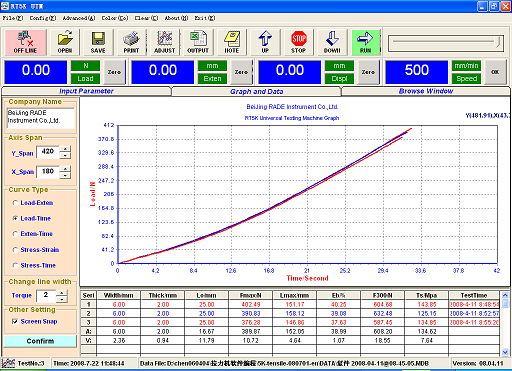

☆Software window
