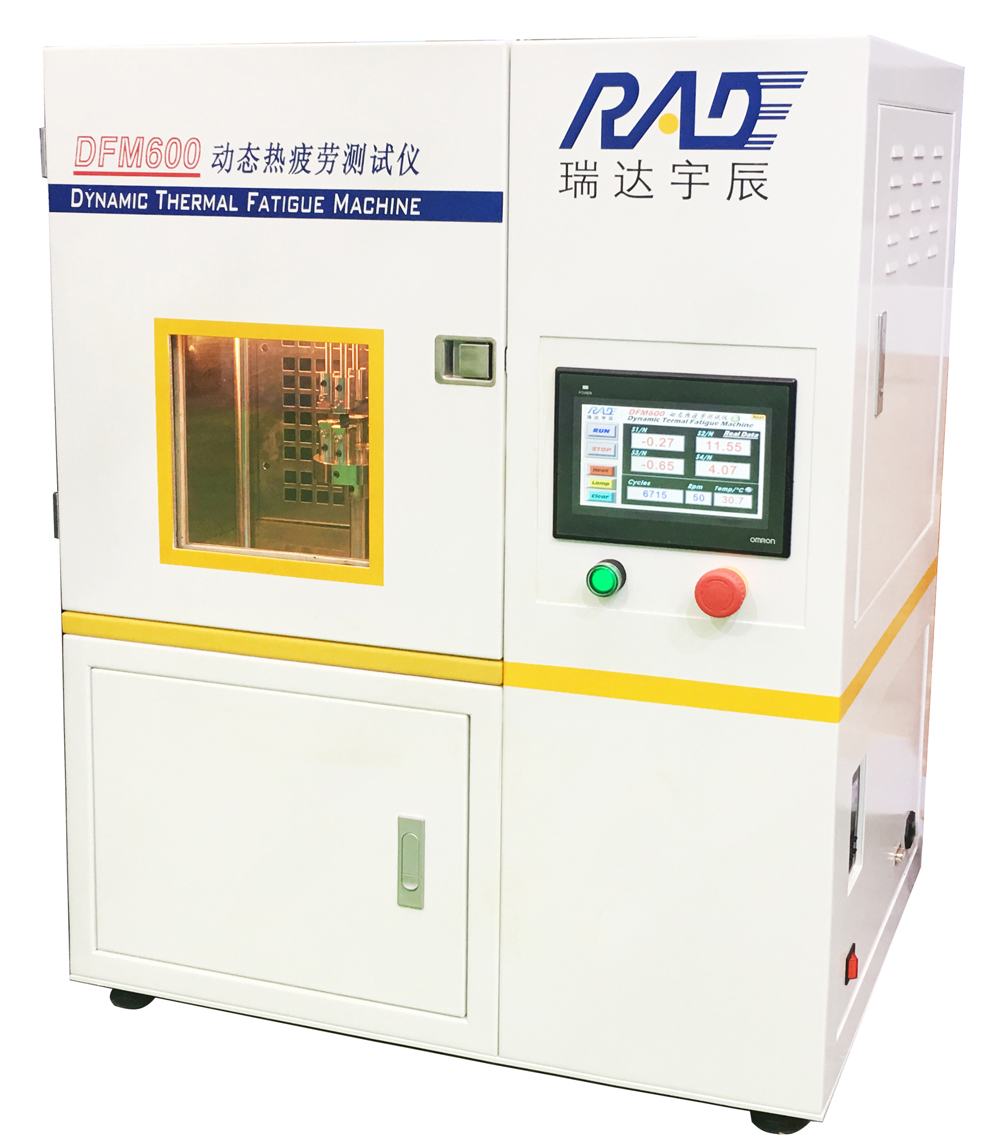

DFM600 Dynamic Thermal Fatigue Machine

       Dynamic Thermal Fatigue Machine is special designed following some features of DMA and De Mattia Flex Cracking Tester. DFM600 can be worked for more than 1 million times under 100 degree with maximum 600Rpm speed. It is used for testing the fatigue abilities of vulcanized rubber, rubber shoes, thermoplastic and other materials crack. It works following ISO132, ISO6943.

    Features

  • Six samples testing with six load cell at the same time with Real Time load displaying.

  • Two kinds of testing : Compress and Tensile, and can adjust the working distance.

  •  Maximum to 600RPM flexing speed.

  • Heating room for samples from room temperature to 100 degrees.

  • Touch screen with RT load display and can operate without PC.

  • During one test, test can be paused or stop automatically when finished.

  • With security features on the up cover.



Specification

Test Speed

600r/min10r/min

Maximum number of samples

6 pcs

Reciprocating travel distance

4mm for Compress, 30mm for Tensile

Maximum force in traction

500N

Heating room Room temp to 100 degree

Working status

Compress and tensile

Safety devices

Safety cover

Dimensions

430mmX430mmX720mm

Weight

200kg

Power

AC220V,50HZ,3A

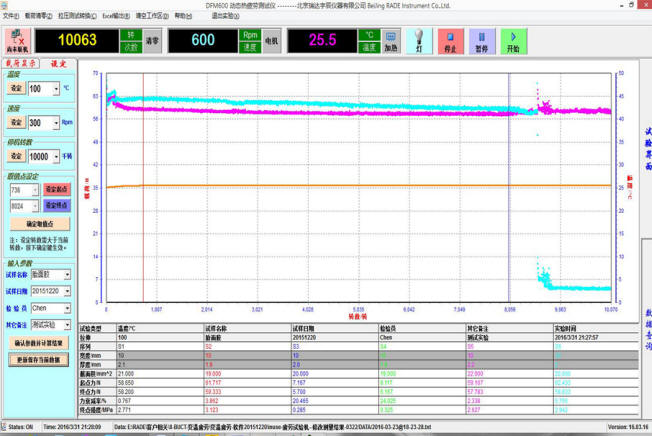

Test Result
